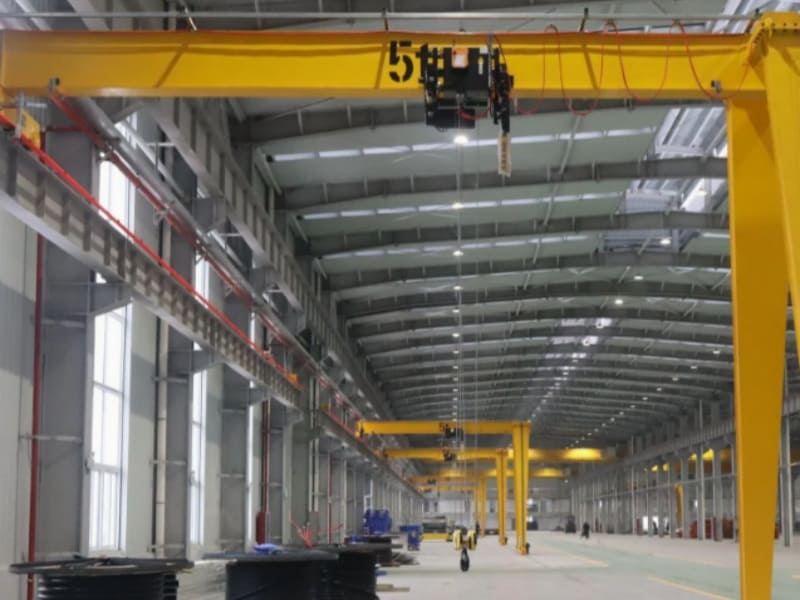

A semi gantry crane is a practical and space-efficient lifting solution designed for workshops, warehouses, production facilities, and outdoor working areas where installation space is limited. Combining the advantages of overhead and gantry cranes, it features one side supported by the existing building structure while the other side is supported by a movable gantry leg running along a ground rail.
This semi-gantry configuration reduces the need for a complete gantry structure while providing flexible lifting coverage. It is particularly useful in facilities where installing a full overhead crane system is difficult or where a full gantry crane would occupy too much working space.
Semi gantry cranes are widely used for material handling, equipment installation, production assembly, loading and unloading, and maintenance operations. Typical applications include machinery manufacturing workshops, steel fabrication plants, precast concrete facilities, warehouses, logistics yards, maintenance areas, and construction sites.
Key Features of Semi Gantry Crane
1. Space-Saving Semi-Gantry Design
The semi gantry crane combines the advantages of an overhead crane and a full gantry crane. With one side supported by the existing building structure and the other side running on a ground rail, it does not require a complete gantry frame across the workshop. This makes it ideal for narrow workshops, side yards, production areas, and factory renovation projects where space is limited.
2. Strong and Durable Structure
The main girder adopts a robust welded box-girder structure, designed to provide high strength and good resistance to deformation. Key components such as traveling wheels, gear reducers, and electric hoists are selected for reliable performance and long service life, helping reduce maintenance requirements during long-term operation.
3. Comprehensive Safety Protection
The semi gantry crane can be equipped with multiple safety devices, including upper and lower lifting limits, travel limit switches, emergency stop functions, overload protection, and power-off protection. For outdoor applications, suitable weather-resistant and protective configurations can also be provided to support reliable operation in changing working conditions.
4. Flexible Control and Smooth Operation
Operators can control the crane through a wired pendant controller or wireless remote control, depending on the working environment. Variable frequency drive control is also available for smoother starting, stopping, acceleration, and deceleration. This helps reduce load swinging and improves positioning accuracy during material handling.
5. Wide Range of Applications
The semi gantry crane can be used in manufacturing workshops, warehouses, maintenance areas, outdoor yards, assembly facilities, and other industrial environments. It is particularly suitable where a conventional overhead crane cannot provide sufficient coverage or a full gantry crane would require excessive installation space.
6. Customized Solutions and Complete Service
We provide customized lifting capacity, span, lifting height, power supply, and control configurations according to your requirements. Outdoor semi gantry cranes can also receive additional anti-rust and corrosion protection. From engineering design and technical drawings to manufacturing, installation guidance, commissioning, spare parts, and after-sales support, we provide a complete lifting solution.
Why Choose Our Single Leg Gantry Crane
1. Direct Manufacturer with Competitive Pricing
We are a professional crane manufacturer with direct production capabilities. By working with the manufacturer directly, customers can avoid unnecessary intermediary costs and benefit from competitive pricing without compromising product quality, engineering support, or service.
2. Customized Crane Design
Every single leg gantry crane has different requirements. Our experienced engineers can provide customized single leg gantry crane solutions based on your lifting capacity, span, lifting height, working class, available space, and operating environment. We can also prepare technical drawings and layouts for project evaluation.
3. Reliable Quality and Certification Support
Quality control is carried out throughout the manufacturing process, from raw material selection and component procurement to welding, assembly, testing, and final inspection. We can provide relevant certificates and technical documents, such as CE and ISO certificates, factory qualification documents, inspection reports, and product documentation, according to project and market requirements.
4. Complete Pre-Sales and Technical Support
Before placing an order, our technical team helps customers select the appropriate crane configuration and components. We provide professional advice on single leg gantry crane capacity, span, lifting height, power supply, control methods, and site conditions, helping customers avoid unnecessary equipment costs or incorrect selection.
5. Global After-Sales Service
Our service continues after delivery. We provide online installation guidance, commissioning support, operation instructions, maintenance recommendations, and technical consultation. Whether you need help with installation or troubleshooting during operation, our technical team can provide timely assistance.
6. Efficient Production and On-Time Delivery
We maintain stable supply chains and carefully manage production schedules to help shorten manufacturing lead times. Before shipment, each crane is inspected and tested according to the agreed requirements. We coordinate production, quality inspection, packaging, and delivery to help ensure your equipment arrives safely and on schedule.
7. Long-Term Customer Support
We aim to build long-term partnerships rather than simply complete a single transaction. From initial consultation and customized design to manufacturing, delivery, installation, spare parts, and ongoing technical support, we provide a complete single leg gantry crane solution.
With a compact structural arrangement and flexible operating range, the semi gantry crane can make better use of existing workshop space while maintaining reliable lifting performance. It is especially suitable for factory renovation projects, narrow workshops, side yards, and production areas with restricted installation conditions.
Depending on the customer’s requirements, the lifting capacity, span, lifting height, traveling speed, power supply, control method, and other specifications can be customized. Our engineers can provide a suitable semi gantry crane solution based on your actual working conditions and site layout.
