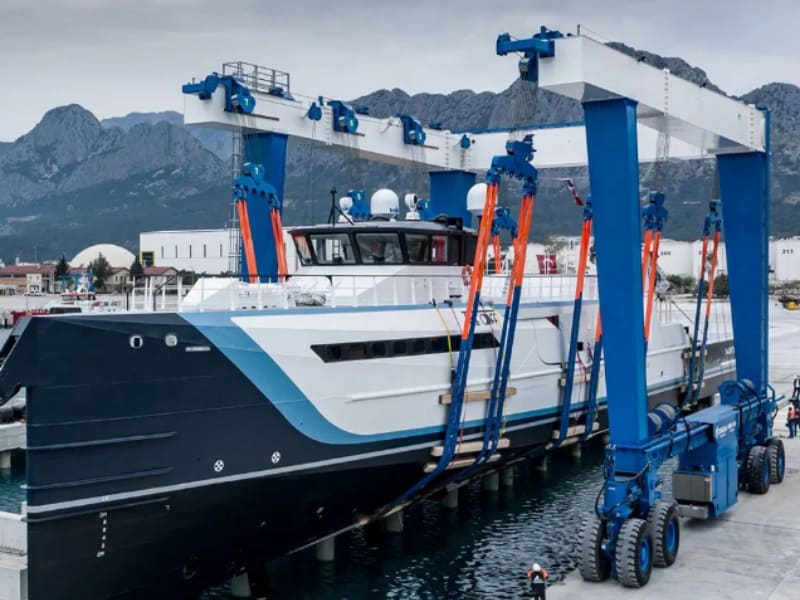

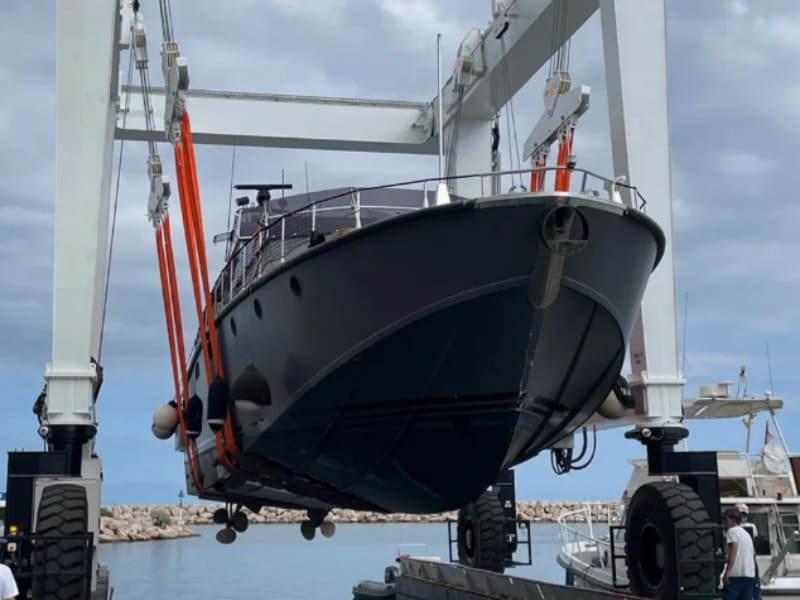

A marine travel lift, also known as a boat gantry crane or yacht crane, is a specialized lifting system designed for safely hoisting, transferring, and launching boats or yachts in marinas, shipyards, and waterfront facilities. It is engineered to provide excellent stability, safety, and ease of operation when handling valuable marine vessels.
The crane structure is typically divided into three main sections: the base support frame, the boom or gantry system, and the lifting spreader mechanism. These components work together to ensure balanced load distribution and smooth, controlled lifting during boat handling operations.
The marine travel lift features a robust U-shaped main frame that allows it to straddle vessels and transport them to storage or maintenance areas. It integrates traveling wheel assemblies, steering systems, hydraulic transmission, lifting mechanisms, and an advanced electrical control system for precise maneuvering.
With its strong load capacity, reliable control, and efficient mobility, the boat gantry crane is an essential solution for modern marine lifting and boat handling operations.
Main Components of a Boat Gantry Crane
Metal Structure: The primary load-bearing framework of the boat gantry crane includes the main beam, outriggers, rotating platform, and boom. This heavy-duty structure ensures overall stability, strength, and safe load distribution during lifting and transport operations.
Lifting Mechanism: Composed of a motor, reducer, wire rope drum, and braking system, the lifting unit controls smooth hoisting and lowering. It provides precise load control, ensuring reliable and safe lifting performance.
Fiber Sling System: High-strength fiber slings with soft protective pads are used to support vessels. The cushioned surface prevents scratches, deformation, or damage to boat hulls during lifting.
Tire and Traveling System: Equipped with multi-directional tire sets, the boat gantry crane supports straight travel, diagonal movement, and in-place turning. This allows flexible maneuvering in marinas, shipyards, and confined docking areas.
Anchoring and Stability Device: Anchoring mechanisms lock the boat gantry crane in position during idle or extreme weather conditions, preventing unwanted movement caused by strong winds.
Electrical Control System: The electrical system powers all crane functions, including lifting, steering, and safety monitoring, ensuring efficient and coordinated operation.
Load Limiting and Safety System: A built-in load limiter continuously monitors lifting capacity. It automatically triggers alarms and cuts power when overload conditions occur, enhancing operational safety.
Key Features of Marine Travel Lift
Adjustable High-Strength Lifting Slings
The marine travel lift is equipped with durable and flexible lifting slings that can be adjusted to fit different boat shapes and hull sizes. The sling system ensures even load distribution and prevents structural damage to vessels during lifting and transportation.
Hydraulic Drive & Motorized Wheel System
Heavy-duty wheels powered by hydraulic motors enable smooth and stable movement across uneven or wet surfaces. Multiple wheel configuration options are available to enhance maneuverability, traction, and load-bearing capacity in shipyards and marinas.
Precision Control & Anti-Sway Operation
Advanced control systems, including wireless remote and pendant control, allow operators to perform precise lifting, positioning, and travel movements. The system minimizes load swing, improving safety and accuracy when handling boats.
Customizable Lifting Capacity & Frame Dimensions
Marine travel lifts can be tailored in frame size, lifting height, and load capacity to suit various operational needs. Models range from compact units for small vessels to heavy-duty solutions for luxury yachts and commercial boats.
Corrosion-Resistant Marine-Grade Structure
Built from high-strength structural steel with advanced anti-corrosion coatings, the marine travel lift is designed to withstand harsh marine environments, including saltwater exposure, humidity, and UV radiation. This ensures extended service life and reduced maintenance costs.
Smooth & Stable Travel Performance
Optimized hydraulic and mechanical systems ensure steady movement, even when transporting heavy boats, enhancing both safety and operational efficiency.Enhanced Safety & Reliability
Integrated safety features such as load limiters, emergency stop functions, and braking systems protect operators, equipment, and vessels throughout all lifting operations.
The marine travel lift is designed to deliver flexible, safe, and efficient boat handling solutions tailored to diverse operational requirements. With its modular construction and customizable configurations, it can be adapted to accommodate various vessel sizes, weights, and working environments. High-strength lifting components combined with an intelligent synchronous control system ensure smooth, balanced, and secure lifting throughout every operation. Multi-point synchronized lifting further enhances stability and improves handling efficiency, even for larger or irregularly shaped boats.
Engineered to perform reliably in challenging conditions, the marine travel lift can maneuver through uneven ground, confined spaces, and complex dock layouts with ease. Its versatility makes it an ideal choice for ports, shipyards, yacht clubs, and marine service centers. By streamlining boat lifting, maintenance, repair, and storage processes, the marine travel lift offers a dependable and cost-effective solution that enhances operational productivity while maintaining the highest safety standards.
