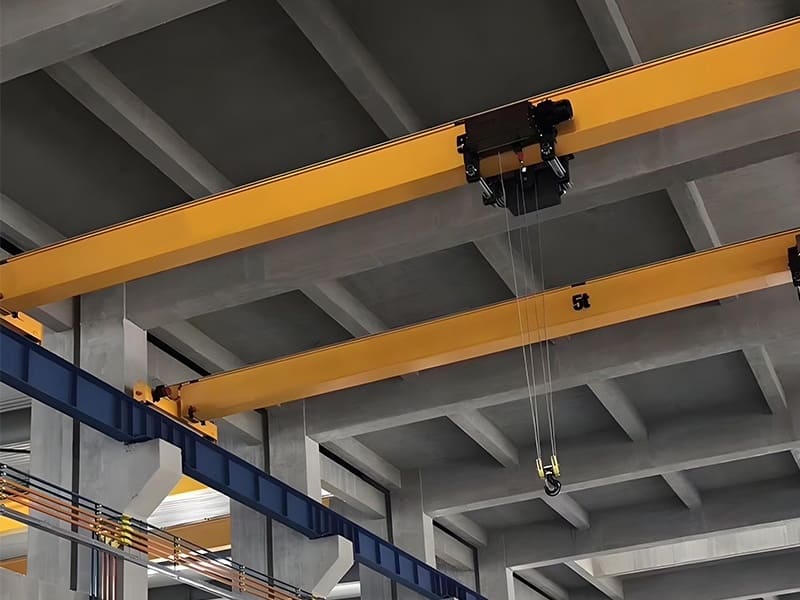

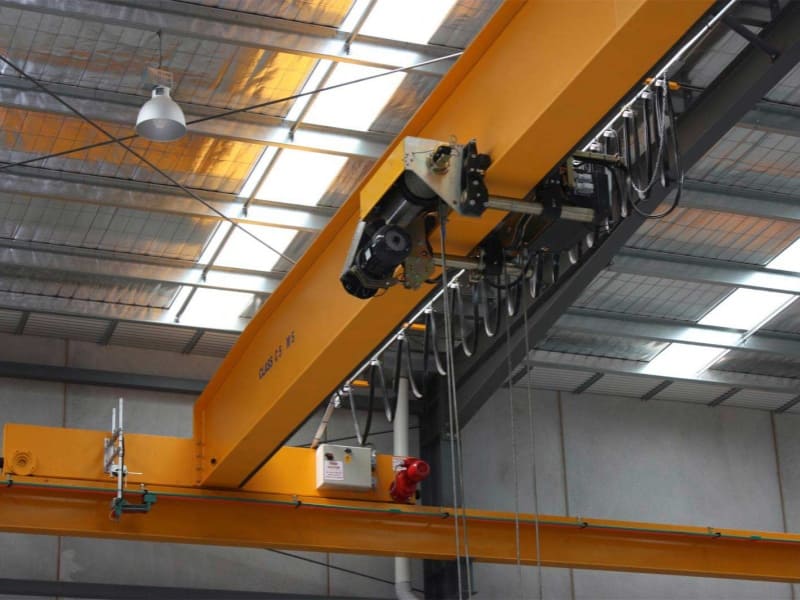

The European type single girder overhead crane features a highly optimized structure that integrates advanced design concepts for the steel frame, hoisting mechanism, and accessories. It utilizes high-strength materials to reduce overall weight while enhancing load capacity. The compact design ensures a shorter distance between the hook and the side walls, allowing for a wider working range. Its low headroom above the rails enables maximum use of the factory’s vertical space, making it ideal for modern industrial environments.
This European type single girder overhead crane is widely used in workshops and warehouses across various industries, including machinery manufacturing, logistics, paper production, electronics, and food processing. The hoist operates under M5 working class with dual lifting speeds and is powered by a German ABM motor. Both cross and long travel motions use SEW geared motors with variable speed control. Equipped with Siemens electrical components and IP54 protection, the crane ensures reliable performance and meets ISO A5/M5 working standards.
The single girder overhead crane is designed with practicality, reliability, and versatility in mind, making it an ideal lifting solution for light to medium-duty material handling. Its key features include:
1. Simple and Robust Structure: This single girder overhead crane features a compact yet sturdy structural design, ensuring high rigidity and stability during lifting operations. The streamlined construction allows for easy assembly, smooth operation, and long service life.
2. Excellent Workmanship and Versatility: Manufactured with precise engineering and advanced fabrication techniques, the crane provides consistent performance and durability. Its modular design offers strong versatility, allowing it to adapt to various working environments and lifting needs.
3. Compact Design for Space Efficiency: With a small overall size and low headroom, this crane maximizes workspace utilization. It is ideal for facilities where ceiling height or floor space is limited, such as small workshops or warehouses.
4. Stable and Flexible Motion Control: The single girder overhead crane can operate with constant speed or variable frequency speed control, enabling smooth and accurate load movement. The frequency control ensures precise positioning and minimizes load swing.
5. Customizable to User Requirements: Different lifting capacities, spans, and control methods can be selected according to the user’s specific application, ensuring an efficient and cost-effective lifting solution.
Benefits
Cost-Effective Solution: A 5 ton single girder overhead crane offers an economical lifting option compared to double girder types. It requires only one bridge beam, resulting in lower material costs and a lighter structure. This design minimizes deadweight and allows the use of simpler runway systems, reducing both installation and operational expenses without compromising performance.
High Operational Efficiency: Despite its compact structure, the 5 ton single girder overhead crane ensures excellent lifting performance and long-term durability. Equipped with high-quality motors, gearboxes, and electrical systems, the single girder overhead crane provides smooth operation, stable hoisting, and minimal downtime. Its efficient design also translates to reduced maintenance requirements and lower energy consumption.
Reliable and Consistent Performance: The crane’s torsionally rigid girder design ensures stable movement and optimal use of available workspace. Advanced technology enables consistent functioning with high precision and safety. It performs reliably even in demanding industrial conditions.
Customizable Design Options: The 5 ton single girder overhead crane can be tailored to fit existing factory layouts with minimal modification. Users can choose from various spans, lifting speeds, and control methods, making it adaptable for different production and material handling requirements across industries.
The single girder overhead crane is a reliable, efficient, and cost-effective lifting solution for modern industrial environments. Its compact structure, advanced control systems, and durable components make it ideal for workshops, warehouses, and production lines where space and budget are key considerations. Whether used for assembly, maintenance, or material transport, it provides stable performance and long service life. With the option for customization, it can be adapted to specific operational needs, ensuring maximum productivity and safety. Choosing a single girder overhead crane not only enhances workflow efficiency but also represents a smart long-term investment for any manufacturing or logistics facility.
