A top running bridge crane is a heavy-duty overhead lifting system designed to travel on rails mounted on top of runway beams, which are supported by building columns or independent steel structures. This configuration allows the crane to handle larger spans and higher lifting capacities, making it an ideal solution for demanding industrial environments.
Built for strength and stability, top running bridge cranes are well suited for heavy manufacturing, steel processing, power plants, warehouses, and other large-scale operations where frequent heavy lifting is required. The bridge travels above the runway beams, providing excellent load distribution, improved structural support, and smooth crane movement.
Key Features of Top Running Bridge Crane
♦Lightweight Structure: Designed with a modern and optimized structural layout, the 10 ton bridge crane offers a lightweight yet robust frame. Its efficient design reduces overall load on building structures while maximizing lifting coverage and workspace utilization, making it ideal for facilities with demanding space requirements.
♦High-Quality Steel Construction: Manufactured using premium-grade steel, the crane provides excellent strength, long-term durability, and resistance to corrosion and wear. This ensures reliable performance even in harsh industrial environments, extending service life and minimizing maintenance needs.
♦Stable Operation: The 10 ton bridge crane is equipped with a complete standard configuration, including advanced drive systems and frequency control technology, the crane delivers smooth travel, accurate load positioning, and minimal vibration. Its stable operation enhances safety, improves workflow efficiency, and reduces the risk of load sway.
♦Efficient Performance: Built-in safety features such as overload protection, limit switches, emergency stop systems, and anti-collision devices ensure safe lifting operations. These safety mechanisms protect both equipment and operators, enabling dependable performance in continuous-duty applications.
♦Low Maintenance: The crane’s modular design simplifies installation, inspection, and maintenance, reducing downtime and service costs. With fewer wear parts and optimized component layouts, the top running bridge crane offers a long operational lifespan and lower total cost of ownership.
♦Environmentally Friendly: High-efficiency motors and optimized transmission systems help reduce power consumption and noise levels, supporting energy savings and environmentally responsible operation.
Common Overhead Crane Terminology
To help you better understand top running bridge crane specifications and system performance, we have prepared a glossary of key industry terms. Knowing these definitions will make it easier to evaluate crane configurations, discuss technical requirements, and select the right solution for your lifting needs.
♦Bridge Girder: The main horizontal beam of an overhead crane that supports the trolley and hoisting mechanism while spanning the working area.
♦Crane Rail: A steel track mounted on runway beams or concrete structures, guiding crane movement along the length of the workspace.
♦Crane Runway: The complete supporting structure that includes rails, beams, brackets, and framework on which the crane travels.
♦Wire Rope Hoist: A mechanical lifting device designed to raise and lower loads using a wire rope drum and motorized drive system.
♦Trolley: A movable unit that carries the hoist and travels laterally across the bridge girders to position loads accurately.
♦End Truck (End Carriage): Located at both ends of the bridge girder, these assemblies support crane travel along the runway rails.
♦Capacity: The maximum safe weight a crane or hoist can lift, typically measured in tons or kilograms.
Understanding these essential terms improves communication with crane specialists and ensures you choose the correct configuration for your top running bridge crane system.

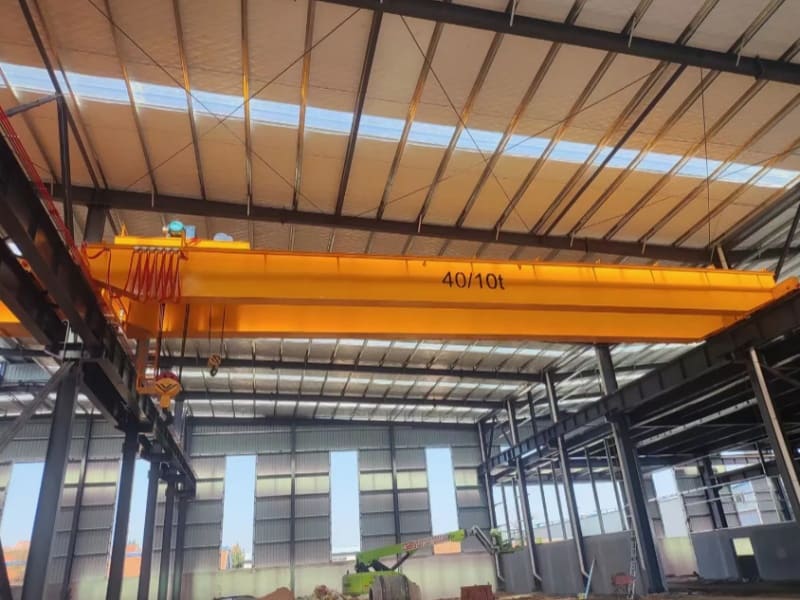

With flexible design options, top running bridge cranes can be manufactured in single or double girder configurations to meet different lifting capacities and workspace requirements. Their robust construction, high reliability, and efficient performance make them a preferred choice for long-term, high-intensity material handling applications.

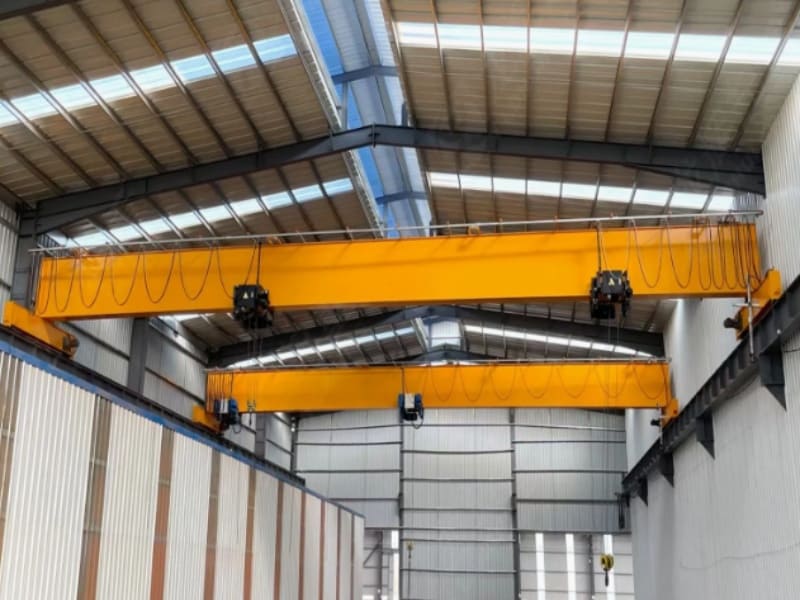

Single girder top running bridge cranes are typically suitable for light-duty applications, such as light manufacturing and machining workshops, warehouses, light assembly lines, and repair shops. Double girder top running bridge cranes, on the other hand, are commonly found in heavy-duty industries, such as steel mills, large machining workshops, and paper mills.
