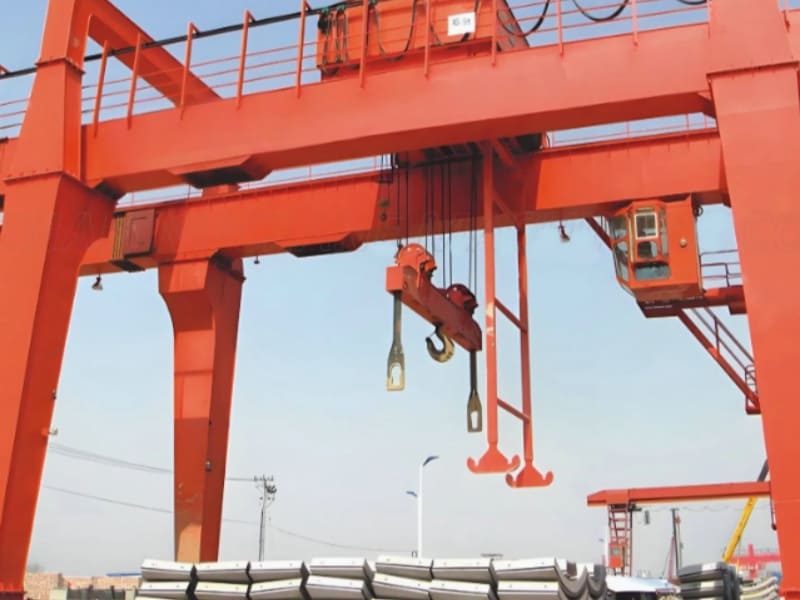

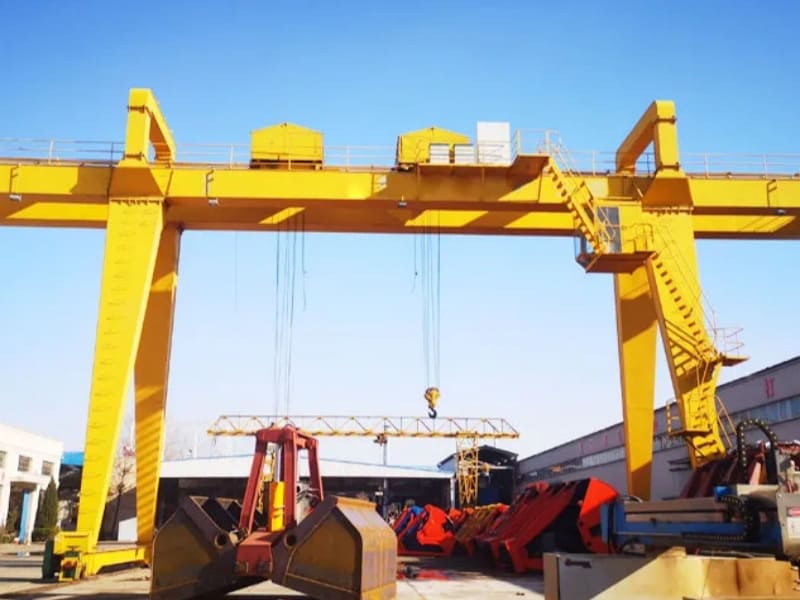

A double girder gantry crane is a heavy-duty gantry crane featuring a dual-beam structure mounted on top of the crane legs and traveling along ground rails. Compared with single girder gantry cranes, this design offers greater stability and higher load-handling capacity. It is typically equipped with an electric crab hoist or open winch trolley rather than a monorail hoist, making it suitable for medium to heavy lifting applications.
The lifting trolley runs on rails installed on the top of the two main girders, while the girders themselves are supported by one or two rigid legs connected to end carriages. This configuration allows the entire gantry crane to travel smoothly along the runway rails. During operation, the crane achieves full three-axis movement: the trolley travels laterally, the hoist lifts and lowers the load, and the crane structure moves longitudinally along the track.
For long-distance travel, double girder gantry cranes are usually equipped with a cable reel system to ensure stable and reliable power supply. Optional cantilevers can be added on one or both sides of the main girders, extending the working area beyond the rails to handle oversized or off-track loads efficiently.
Features
♦Heavy-Duty Outdoor Application: The double girder gantry crane is specifically designed for demanding outdoor environments, such as open yards, ports, construction sites, and railway freight terminals. It is ideal for general lifting, material handling, and loading or unloading operations where high capacity and stability are required.
♦Robust Structural Configuration: This double girder gantry crane consists of two main girders, four rigid support legs, a crane traveling system, a lifting trolley, and complete electrical equipment. The main girders and legs adopt a box-type welded structure, providing excellent strength, rigidity, and long-term durability under heavy loads.
♦Reliable Traveling and Lifting Mechanism: The crane traveling mechanism uses an independent drive system, ensuring smooth movement and precise positioning even under full load conditions. This design improves operational efficiency and reduces mechanical stress.
♦Flexible Operation and Power Supply Options: All crane movements can be controlled from a spacious operator cabin or via wireless remote control for safer and more convenient operation. Power supply options include cable reels or sliding conductor systems, allowing customization based on site conditions.
♦Wide Capacity Range and Harsh Environment Adaptability: The double girder gantry crane supports capacities from 5 to 250 tons, spans of 12 to 35 meters, and lifting heights from 6 to 30 meters. With a duty classification of A3 to A7, it operates reliably in temperatures ranging from –25°C to +42°C.
♦Customized Engineering Solutions: Each gantry crane can be specially designed and manufactured according to your plant layout and specific lifting requirements, ensuring optimal performance and cost efficiency.
Double girder gantry cranes are equipped with a comprehensive range of safety devices to ensure stable operation, protect equipment, and safeguard personnel during lifting and traveling processes. These safety systems are designed in accordance with international standards and are essential for heavy-duty and high-frequency operations.
♦Overload Limiter: An advanced overload protection system continuously monitors the lifting load. When the actual load exceeds the rated capacity, the system automatically cuts off lifting motions and issues an alarm, preventing structural damage and unsafe operation.
♦Impact-Resistant Polyurethane Buffers: High-quality polyurethane buffers are installed at the heavy duty gantry crane traveling ends to absorb impact energy during operation. These buffers provide long service life, excellent elasticity, and strong resistance to collision, reducing mechanical stress on the crane structure and rails.
♦Crane Traveling Limit Switches: Limit switches are installed on long travel and cross travel mechanisms to precisely control crane movement. They prevent over-travel, reduce the risk of derailment, and ensure smooth and accurate positioning.
♦Electrical Protection Systems: The heavy duty gantry crane is equipped with loss-of-voltage protection and phase sequence / phase failure protection. These systems automatically stop the crane in case of abnormal power supply, preventing motor damage and electrical accidents.
♦Emergency Stop and Braking System: An emergency stop system allows operators to immediately halt all crane motions in critical situations. Combined with reliable electromagnetic braking systems, it ensures quick response and safe load holding.
♦Lifting Height Limiter: The lifting height limiter prevents the hook from over-hoisting or over-lowering, protecting the hoist, wire rope, and drum while ensuring safe vertical operation.
