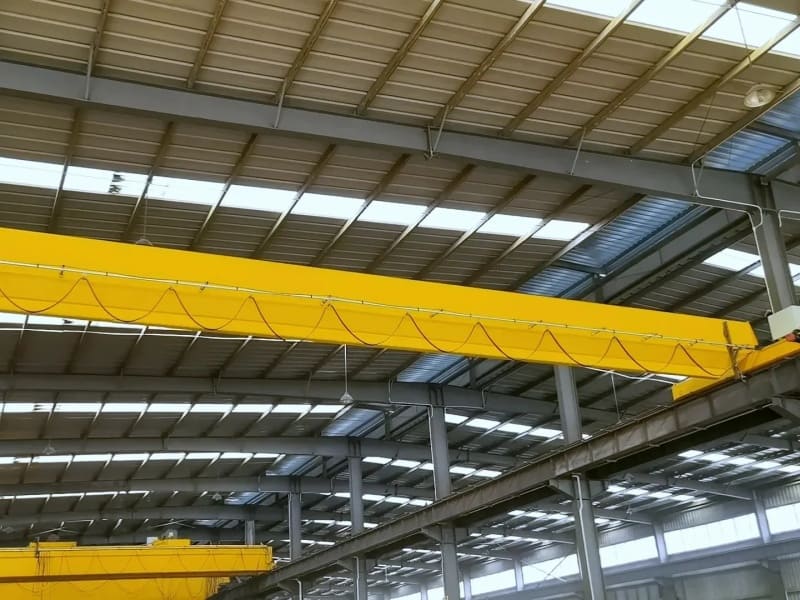

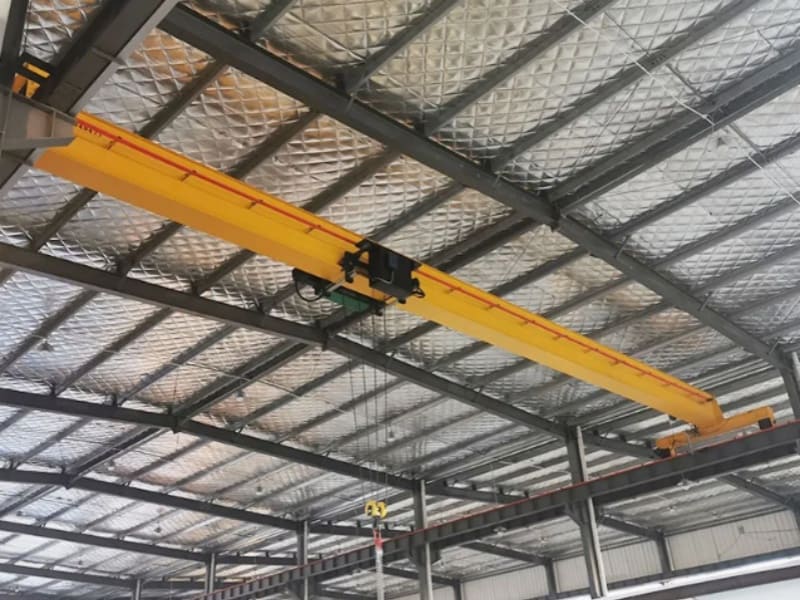

A single girder overhead traveling crane is a material handling solution widely used in workshops, warehouses, and industrial yards. Installed on runway rails supported by reinforced concrete columns or steel structures, the crane forms a bridge-like configuration that ensures stable and efficient lifting operations.
The bridge travels longitudinally along the rails on both sides of the building, allowing materials to be lifted and transported smoothly across the working area. This design makes full use of the space beneath the crane, enabling efficient lifting without interference from ground equipment or production lines.
As one of the most commonly used lifting systems, single girder overhead cranes play an important role in improving mechanization and automation in modern industrial production. They are widely applied in indoor and outdoor industrial and mining enterprises, as well as in steel, chemical, and railway transportation industries.
Features
Lightweight & Space-Saving Structure
Designed with a lightweight yet robust structure, the light duty bridge crane is ideal for workshops and facilities with limited headroom. Equipped with low headroom electric hoists, it maximizes the available lifting height while maintaining excellent performance and stability. The compact design also helps reduce building load requirements and overall installation costs.
Wide Range of Lifting Capacities
With lifting capacities available up to 20 tonnes, light duty bridge cranes offer strong versatility. They are suitable for a wide variety of material handling tasks across industries such as manufacturing, warehousing, steel processing, assembly lines, and maintenance workshops.
Smooth & Precise Operation
Standard VSD (Variable Speed Drive) inverter-controlled travel and cross travel mechanisms ensure smooth acceleration and deceleration. This not only improves load positioning accuracy but also reduces sway, enhances operational safety, and extends the service life of mechanical components.
Highly Customizable Configuration
To meet diverse application needs, light duty bridge cranes can be customized with advanced features such as VFD-controlled hoisting, no-load high-speed operation, anti-crab and anti-sway systems, load display, remote control, and automation solutions. These options help improve efficiency, safety, and operator comfort.
Safety Protection
Upper and Lower Limit Switches
The wire rope electric hoist is equipped with high-precision, gear-driven upper and lower limit switches. When the hook reaches the preset upper or lower limit position, the limit switch automatically cuts off the power supply to the hoisting motor, preventing over-travel and protecting the hoist, wire rope, and structural components from damage.
Electronic Overload Protection
To ensure safe lifting operations, the single girder bridge crane is fitted with an advanced electronic overload protection device combined with a safety monitoring unit. This system continuously measures wire rope tension and lifting load. When the actual load exceeds the rated capacity—typically reaching 105% of the rated load—the overload protector immediately interrupts the hoisting circuit, preventing unsafe lifting and reducing the risk of mechanical failure.
Integrated Safety Monitoring System
Based on user requirements, the crane can be equipped with an intelligent safety monitoring system that provides comprehensive operational oversight. Key functions include calculation of remaining safe working cycles of the hoisting mechanism, tracking cumulative hoisting time, recording overload events, and monitoring the number of motor start cycles. The system also offers motor overheating protection with alarms, overload and brake wear warnings, brake pad thickness alerts, fault diagnostics, and maintenance reminders. These features help operators and maintenance teams identify potential issues early, improving safety, reliability, and overall service life of the single girder bridge crane.
