High Quality Single Girder Overhead Crane for Industrial Applications

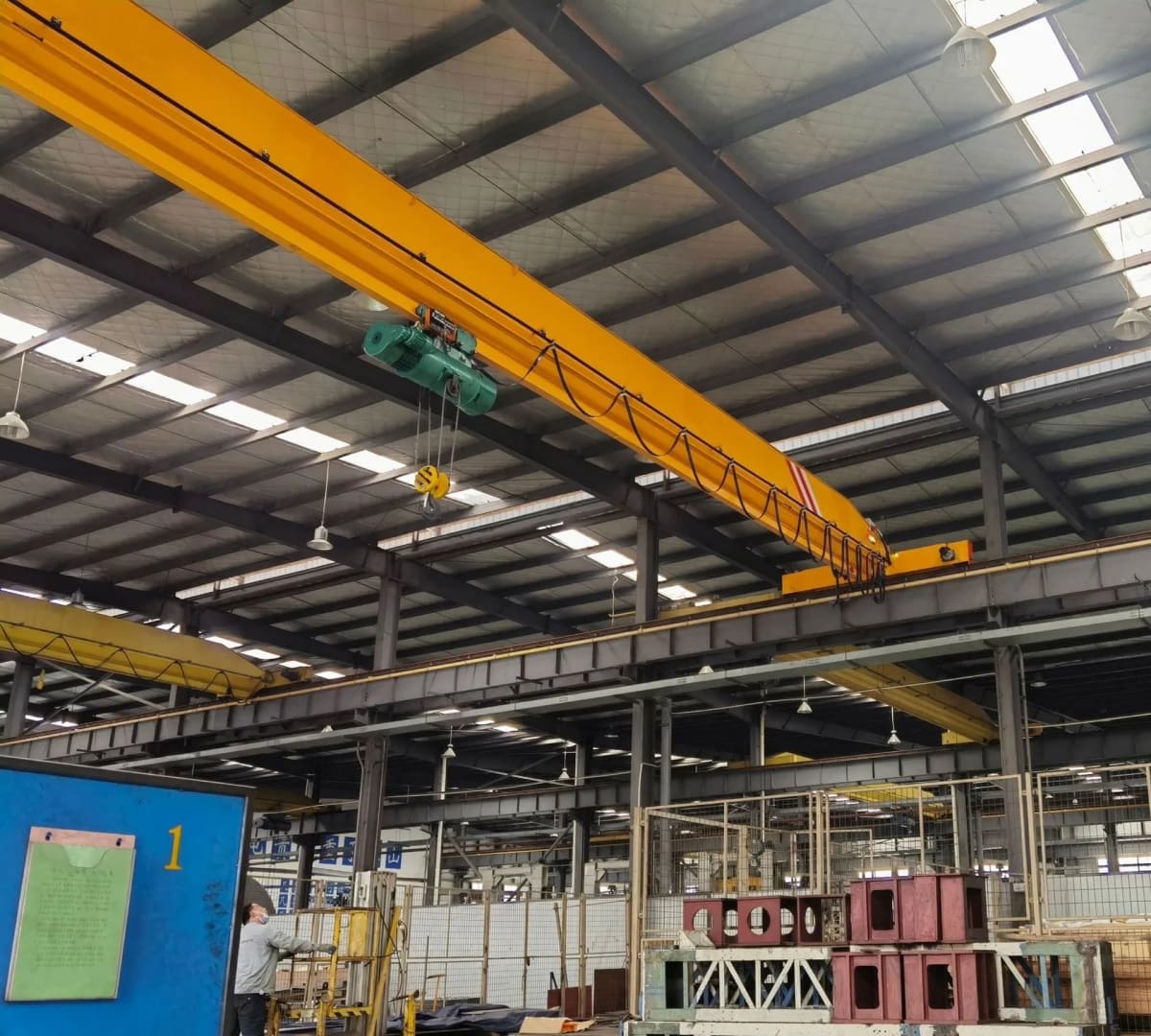

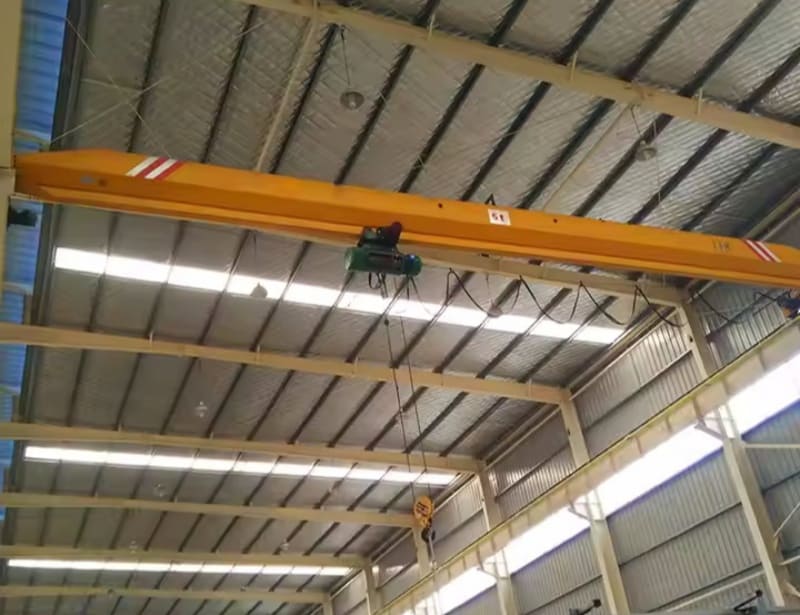

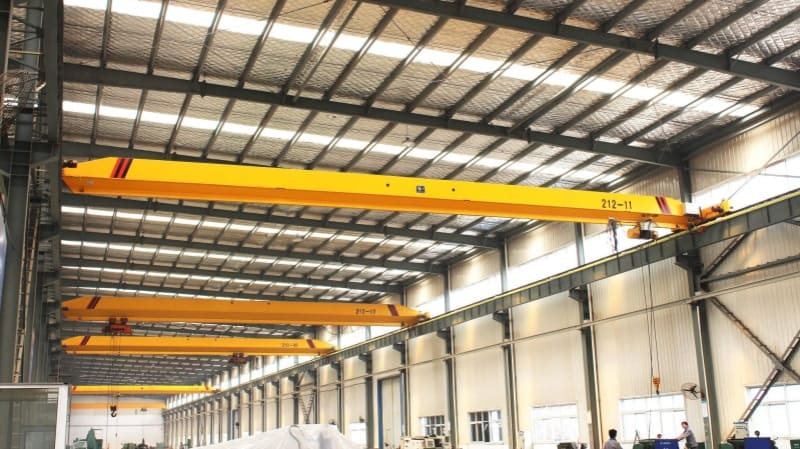

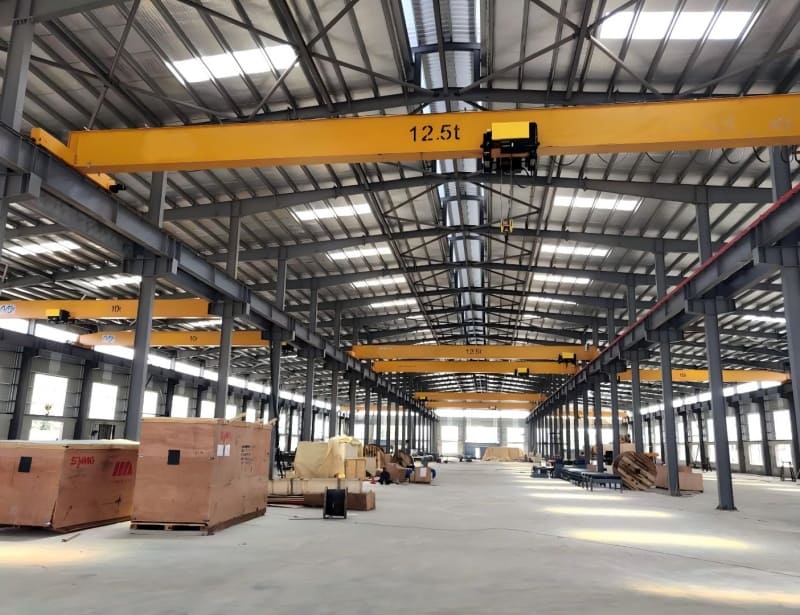

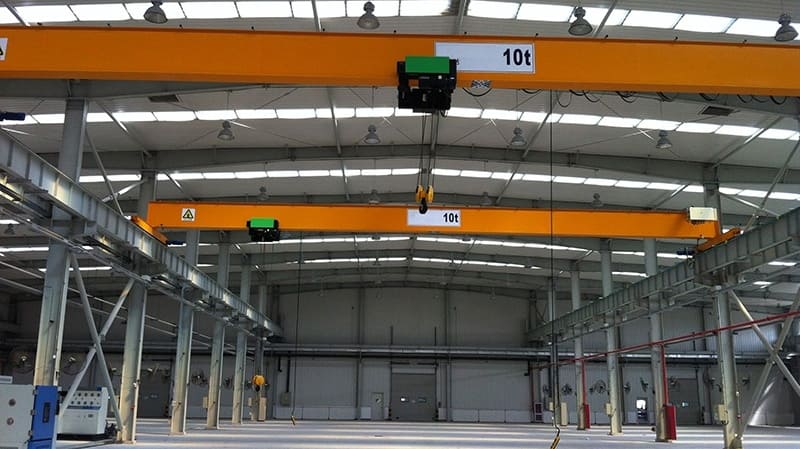

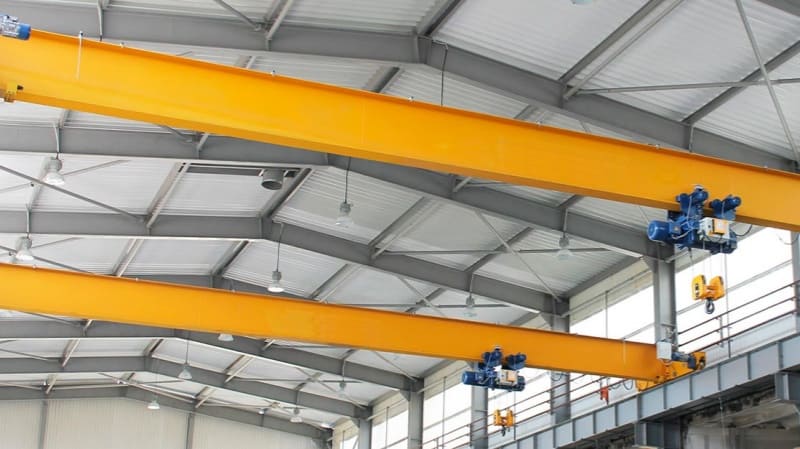

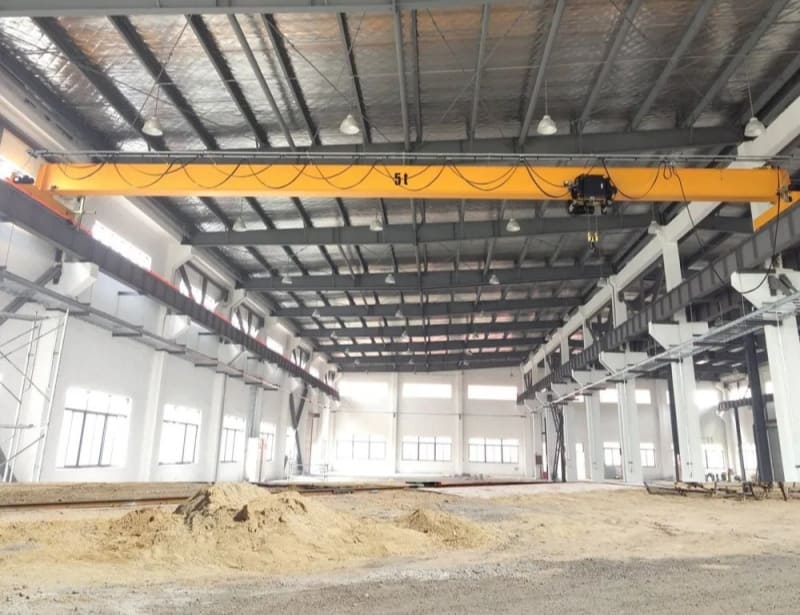

The single girder overhead crane is a highly efficient material handling solution, specifically designed to meet the demands of modern industrial environments such as factories, warehouses, and production workshops. With its single-girder structure, the crane offers a lighter overall weight and a more compact appearance compared to double girder models. This streamlined design not only reduces building and structural requirements but also simplifies installation, maintenance, and operation. The main girder and end beams are constructed from high-strength steel, ensuring excellent load-bearing capacity, stability, and long service life under continuous working conditions.

Another key advantage of the single girder bridge crane is its modular design, which allows for flexible customization. Depending on specific project requirements, it can be configured with different spans, lifting capacities, and control systems, making it suitable for a wide range of applications. Its adaptability ensures seamless integration into both new facilities and existing industrial layouts. Widely used in industries such as manufacturing, logistics, steel processing, and construction, the single girder overhead crane provides a reliable, cost-effective, and safe lifting solution. By improving workflow efficiency and reducing manual labor, it has become an indispensable tool for material handling in modern industrial operations.

♦Capacity: Designed to handle loads of up to 15 tons, single girder overhead cranes are available in both top-running and underhung configurations to meet diverse lifting requirements.

♦Span: These cranes can accommodate a wide range of spans. Standard structural girders reach up to 65 feet, while advanced monobox or welded plate box girders can extend up to 150 feet, offering flexibility for larger facilities.

♦Construction: Manufactured using high-strength rolled steel sections, with optional welded plate construction available for heavy-duty applications, ensuring durability and long service life.

♦Styles: Customers can choose between top-running or under-running crane styles, depending on building design, headroom limitations, and application needs.

♦Service Class: Available in CMAA Class A through D, these cranes are suited for light-duty handling, standard industrial use, or heavy production applications.

♦Hoist Options: Compatible with both wire rope and chain hoists from leading national and international brands, providing reliable lifting performance.

♦Power Supply: Designed to operate with standard industrial voltages, including 208V, 220V, and 480V AC.

♦Temperature Range: Performs efficiently in normal working environments, with an operating range from 32°F to 104°F (0°C to 40°C).
