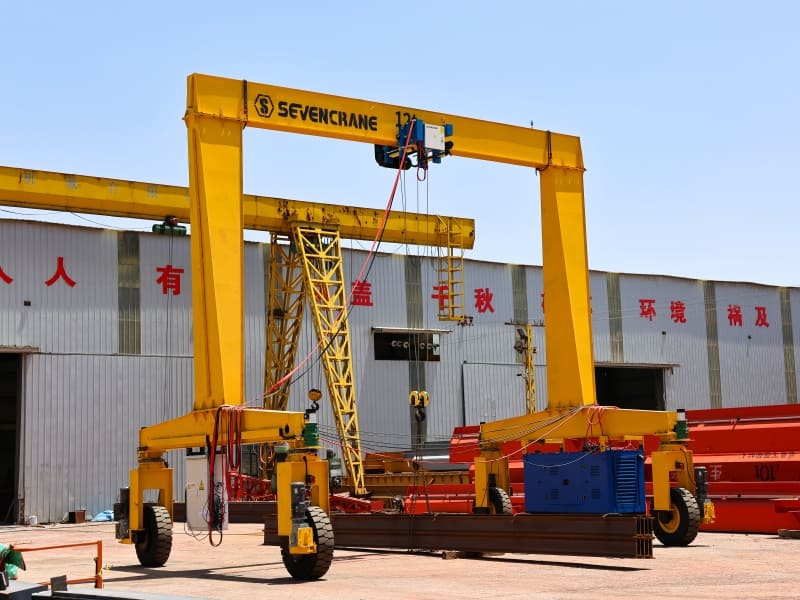

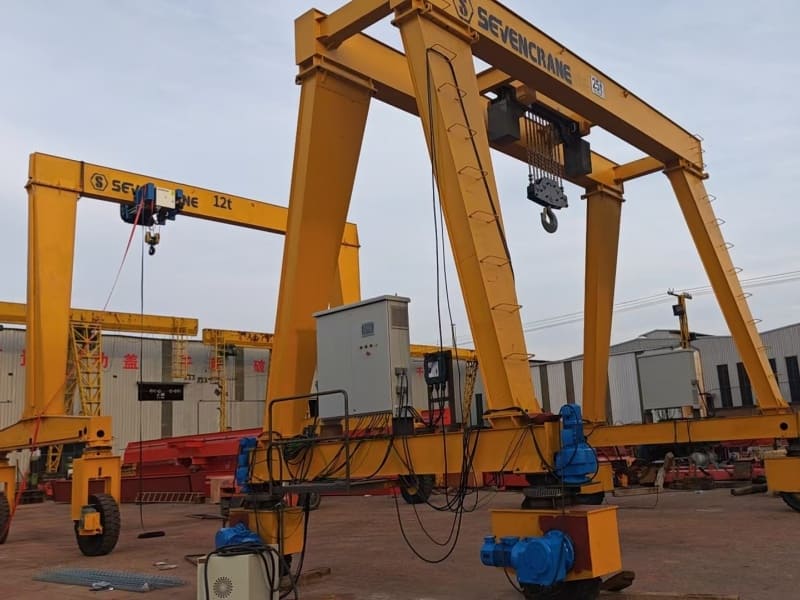

Rubber tyred gantry crane (RTG crane) is a highly efficient material handling solution designed primarily for outdoor container handling and transportation operations. Thanks to its rubber-tired structure, the crane can move flexibly within the working area without relying on fixed rails, providing excellent mobility and a high utilization rate of the operating site.
Our rubber tyred gantry cranes are available with lifting capacities ranging from 20 tons to more than 200 tons, making them suitable for a wide variety of heavy-duty applications. Whether used in ports, container yards, logistics centers, or industrial terminals, each crane can be customized to meet specific project requirements. Our engineering team works closely with customers to provide tailored lifting solutions that maximize efficiency and operational performance.
The RTG crane mainly consists of a robust main frame, tire traveling mechanism, steering system, hydraulic transmission system, power system, electrical control system, hoisting mechanism, and multiple safety devices. The combination of these advanced systems ensures stable operation, precise control, and reliable performance under demanding working conditions.
To facilitate transportation and installation, the maximum dimensions and weight of individual components are designed to comply with highway transportation requirements. In addition, safe and practical lifting points are provided on transport and installation components, ensuring convenient handling during delivery, assembly, and maintenance procedures.
Advantages
♦Excellent Flexibility and Mobility
One of the greatest advantages of a rubber tyred gantry crane is its outstanding mobility. Unlike rail-mounted gantry cranes, an RTG crane operates on rubber tires and does not rely on fixed tracks. This allows it to move freely within container yards, ports, and industrial sites, providing exceptional operational flexibility and enabling quick adjustments to changing working requirements.
♦Reduced Infrastructure Costs
Since the crane does not require rail installation, customers can significantly reduce infrastructure investment and construction time. The elimination of track maintenance also lowers long-term operating expenses. This makes the rubber tyred gantry crane a highly cost-effective solution, especially for facilities that need flexible material handling capabilities without major site modifications.
♦High Operating Efficiency
Rubber tyred gantry cranes are designed for fast and efficient lifting, stacking, and transportation operations. Their advanced control systems and excellent maneuverability enable rapid container handling and minimize loading and unloading times. As a result, the crane can improve productivity, optimize yard management, and reduce operational downtime.
♦Reliable Safety Performance
Safety is a critical feature of RTG cranes. They are equipped with multiple protection systems, including overload protection devices, emergency stop functions, limit switches, anti-collision systems, and fault diagnosis technology. These features help ensure stable and safe operation while protecting both personnel and equipment in demanding working environments.
♦Wide Range of Applications
The rubber tyred gantry crane is suitable for a variety of industries and applications. It is widely used in container terminals, railway freight yards, logistics parks, warehouses, construction sites, and heavy industrial facilities. Its ability to handle different types of cargo and adapt to various working conditions makes it one of the most versatile and efficient lifting solutions available for modern material handling operations.
Applications
♦Port Container Terminals
RTG cranes are widely used in port container terminals for handling and stacking shipping containers. Their rubber-tired design allows them to move flexibly between container blocks, enabling rapid loading, unloading, and storage operations. With high lifting capacity and excellent maneuverability, RTG cranes can efficiently meet the demanding requirements of high-throughput container terminals and significantly improve port productivity.
♦Railway Freight Terminals
At railway freight terminals, RTG cranes play an important role in intermodal transportation. They are used to transfer containers efficiently between trains and trucks, ensuring smooth cargo movement throughout the logistics chain. Their precise positioning capabilities and large working range help reduce handling time and increase the overall efficiency of rail freight operations.
♦Logistics Parks and Container Yards
RTG cranes are an ideal solution for logistics parks and container storage yards where efficient space utilization is essential. They can stack containers multiple levels high, maximizing storage capacity while maintaining quick access to individual containers. In addition to container stacking, RTG cranes are also suitable for short-distance container transportation within the yard, improving operational flexibility and reducing labor costs.
♦Inland Waterway Ports
Inland ports and river terminals also benefit from the application of RTG cranes. Their rubber-tired structure allows them to operate without requiring extensive rail infrastructure, making them particularly suitable for small ports, temporary terminals, and sites with limited construction conditions. The flexibility of RTG cranes helps reduce infrastructure investment while still providing reliable and efficient container handling capabilities.
♦Multimodal Logistics Centers
RTG cranes are increasingly used in modern multimodal logistics centers that integrate sea, rail, and road transportation. Their ability to handle containers quickly and efficiently supports seamless cargo transfer between different transportation methods, improving logistics efficiency and helping operators meet the growing demands of global trade and supply chain management.
With its excellent mobility, high operating efficiency, and low infrastructure requirements, the RTG crane has become an indispensable solution for modern container handling and material transportation. Whether used in ports, logistics centers, railway terminals, or industrial facilities, an RTG crane can significantly improve productivity while reducing operating costs. By choosing a reliable and customized RTG crane solution, businesses can achieve safer, more efficient, and more flexible material handling operations for long-term success.
