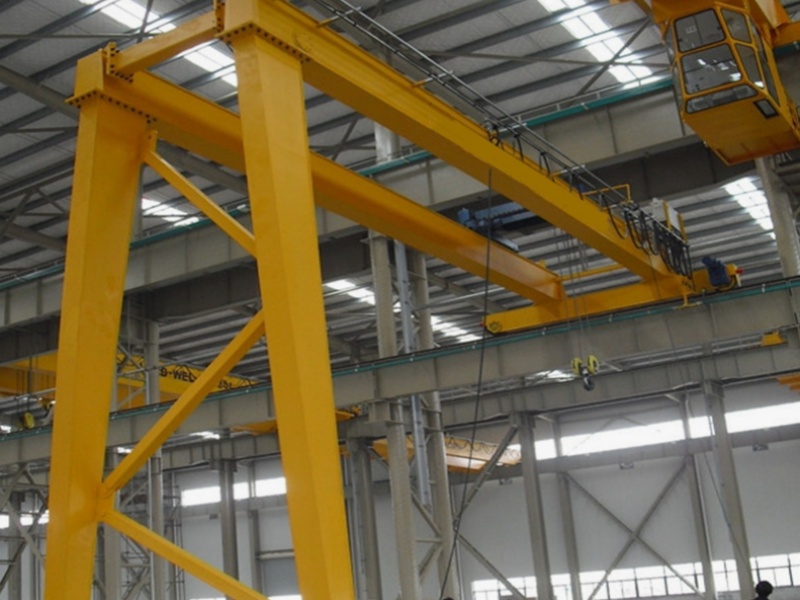

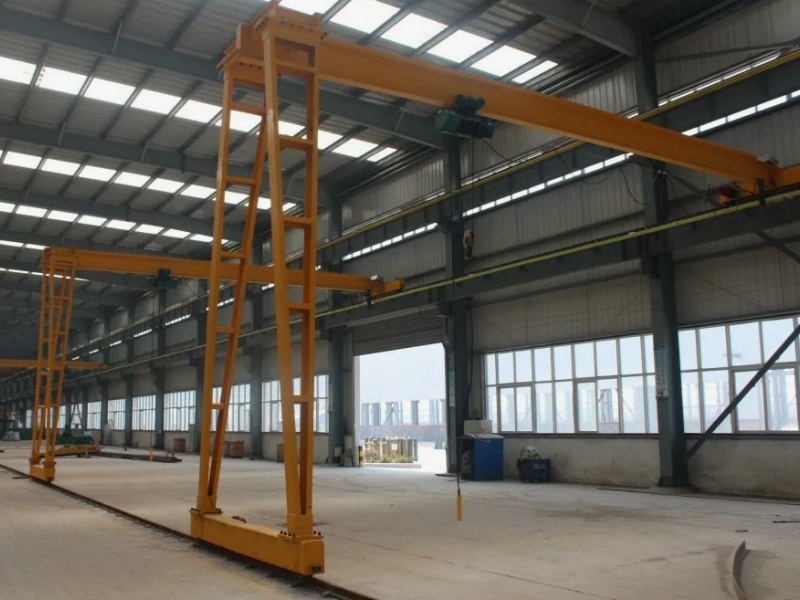

The semi gantry crane is a highly efficient and flexible lifting solution designed for workshops, warehouses, and other industrial material handling environments. Combining the advantages of both overhead cranes and gantry cranes, one side of the crane travels on a ground rail while the other side is supported by the existing building structure or supporting framework. This unique design makes it especially suitable for facilities with limited installation space or restricted structural conditions.
Built with a high-strength steel structure, the semi gantry crane offers excellent rigidity, strong load-bearing capacity, and stable operation. The optimized mechanical design, together with advanced transmission and electrical control systems, ensures smooth traveling, precise positioning, and reliable lifting performance during continuous industrial operations.
The crane is widely used for lifting, transferring, loading, and positioning various heavy materials and equipment. It is suitable for machinery manufacturing, steel processing, logistics, assembly workshops, and warehouse applications where efficient material handling is required.
Features
♦Space-Saving Structural Design
The single leg gantry crane utilizes the existing building structure or workshop support system on one side, while the other side operates on ground rails. This innovative design reduces the need for additional supporting steel structures, effectively saving floor space and lowering overall installation and construction costs.
♦Suitable for Indoor and Outdoor Applications
Designed with strong adaptability, the single leg gantry crane can operate efficiently in both indoor workshops and outdoor working environments. It is widely used in factories, warehouses, assembly areas, logistics centers, and open-yard material handling applications, providing reliable lifting solutions for various industries.
♦Excellent Operational Flexibility
Compared with traditional full gantry cranes, the single leg gantry crane provides a more open working area underneath the crane system. This allows forklifts, trucks, and other transport equipment to move freely around the site, improving logistics efficiency and ensuring smoother material flow during production and handling operations.
♦Cost-Effective Lifting Solution
The simplified structure and reduced steel consumption make the single leg gantry crane a more economical option compared to full gantry crane systems. Lower material usage also helps reduce transportation and installation expenses, making it an ideal choice for customers seeking efficient performance with optimized investment costs.
♦Easy Installation and Maintenance
The compact and modular design allows for faster installation and easier system integration into existing facilities. With fewer structural components and simplified mechanical systems, maintenance requirements are reduced, helping minimize downtime and lower long-term service costs.
♦Stable and Reliable Performance
Manufactured with high-strength steel and advanced control systems, the single leg gantry crane ensures stable operation, smooth traveling, and reliable lifting performance. It is capable of handling frequent material transfer tasks while maintaining high safety standards and operational efficiency.
♦Customizable for Different Working Conditions
The crane can be customized according to lifting capacity, span, lifting height, control mode, and working environment requirements. Optional features such as frequency control, remote operation, explosion-proof systems, and intelligent monitoring functions are available to meet various industrial applications.
Safety Devices
♦Overload Protection System: The semi gantry crane is equipped with an overload limit device that continuously monitors the lifting load during operation. When the load exceeds the rated capacity, the system automatically stops lifting movements to prevent equipment damage, structural stress, and potential safety accidents.
♦Rubber Buffer Protection: High-quality rubber buffers are installed at key traveling positions to absorb impact force during crane movement. This effectively reduces collision damage between crane components and runway structures, ensuring smoother operation and extending equipment service life.
Electrical Safety Protection Devices: Multiple electrical protective devices are integrated into the control system to ensure stable and safe operation. These devices help prevent short circuits, phase loss, electrical leakage, and other electrical failures that may affect crane performance and operator safety.
♦Emergency Stop System: An emergency stop function is installed for rapid response in unexpected situations. Operators can immediately stop all crane movements with a single action, minimizing operational risks and improving overall workplace safety.
♦Low Voltage Protection Function: The semi gantry crane is designed with voltage lower protection to safeguard electrical components from unstable or insufficient power supply conditions. This feature helps maintain reliable operation and protects the electrical system from damage caused by abnormal voltage fluctuations.
♦Current Overload Protection: The electrical system includes current overload protection to prevent excessive current from damaging motors and electrical components. This improves operational reliability and extends the overall lifespan of the crane equipment.
♦Rail Anchoring Device: Rail anchoring systems ensure stable positioning of the semi gantry crane during operation and help improve overall running safety. This feature is especially important for outdoor or heavy-duty working environments.
♦Lifting Height Limiter: The lifting height limit device automatically restricts excessive hook travel, preventing over-lifting accidents and protecting both the hoisting mechanism and surrounding equipment from damage.
To meet different operational requirements, the semi gantry crane can be customized with various lifting capacities, spans, lifting heights, and control methods. Optional configurations such as frequency control, remote operation, explosion-proof systems, and intelligent monitoring functions are also available for special working conditions.
With its compact structure, flexible installation, and reliable performance, the semi gantry crane is an ideal solution for improving production efficiency and reducing material handling costs in modern industrial facilities.
