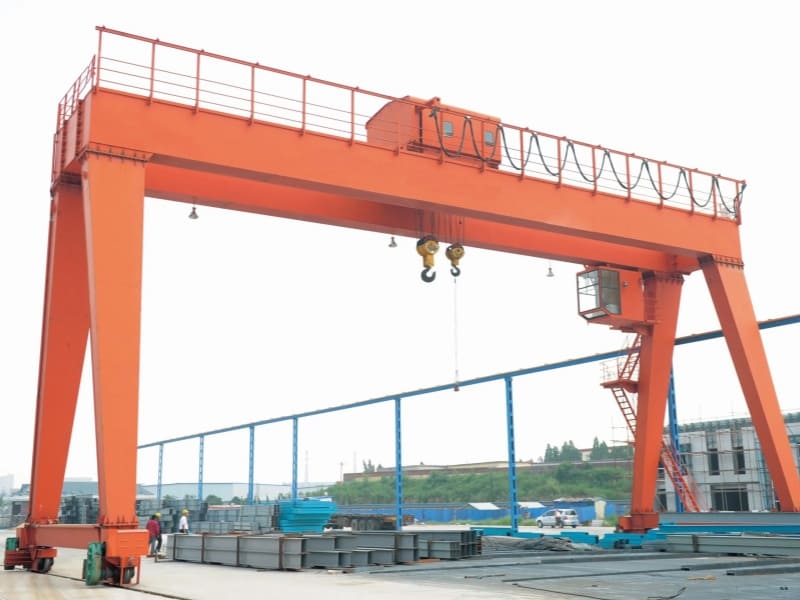

Rail Mounted Gantry Crane, also known as RMG crane, is a specialized container handling crane widely used in container terminals, railway yards, and logistics centers. It is designed for efficient loading, unloading, stacking, and transferring of 20ft, 40ft, and 45ft containers.
The crane mainly consists of a double girder steel structure, supporting legs, traveling end trucks, top-running trolley, and a container spreader. The vertical leg design allows containers to pass smoothly through the crane span and cantilever area, improving operational flexibility and yard utilization.
According to different working requirements, the RMG crane can be equipped with a rotary trolley or rotary spreader system to achieve flexible container positioning. With heavy-duty design, high-strength structure, and frequency conversion speed control, it provides stable and efficient operation. The crane is suitable for all-weather working conditions and can operate reliably in harsh environments with temperatures ranging from -40℃ to 40℃.
Features of Rail Mounted Gantry Crane
1. High Positioning Accuracy and Stable Operation
RMG cranes run on fixed rails, which ensures precise movement along predefined paths. This rail-mounted design provides excellent positioning accuracy during container lifting, stacking, and transportation. The stable structure reduces operational errors and improves safety and efficiency in container handling operations.
2. Efficient Space Utilization
Rail Mounted Gantry Cranes are specially designed for container yards where space optimization is important. Since the crane operates along fixed tracks, it does not require additional maneuvering areas like mobile handling equipment. This allows containers to be stacked closer together, increasing yard storage capacity and improving land utilization.
3. High Working Efficiency
With a powerful double girder structure, advanced control system, and high-performance lifting mechanism, RMG cranes can handle large volumes of containers efficiently. The crane supports fast lifting, traveling, and positioning operations, making it an ideal choice for busy container terminals, railway freight stations, and logistics centers.
4. Environmentally Friendly Operation
RMG cranes are mainly powered by electricity, which significantly reduces fuel consumption and carbon emissions compared with traditional diesel-powered container handling equipment. This makes them a cleaner and more sustainable solution for modern container yards.
5. Reliable Performance and Low Maintenance
Designed for heavy-duty working conditions, RMG cranes feature a robust steel structure and durable components. With proper maintenance, they can provide long-term reliable service while reducing downtime and operating costs. Their automated and intelligent control options also help improve operational safety and management efficiency.
Applications of Rail Mounted Gantry Crane
1. Port and Container Terminal Operations
Rail mounted gantry cranes are widely used in modern ports and container terminals for loading, unloading, stacking, and transferring containers. They provide high-efficiency handling solutions for 20ft, 40ft, and 45ft containers, helping improve terminal productivity and optimize container yard management. Their precise positioning and stable operation make them an essential piece of equipment for large-scale container logistics.
2. Large Logistics Centers and Warehousing Parks
Rail mounted gantry cranes are suitable for large logistics parks, railway freight yards, and container storage areas where efficient space utilization is required. By operating on fixed rails, they can maximize storage capacity and handle a large number of containers in limited areas, improving transportation efficiency and reducing manual handling costs.
3. Steel Structure Processing and Manufacturing Plants
In steel structure factories and heavy manufacturing workshops, rail mounted gantry cranes can be used for transporting steel materials, structural components, and large workpieces. Their strong lifting capacity and stable movement provide reliable support for production processes, improving working efficiency and reducing labor intensity.
4. Shipbuilding and Marine Engineering Projects
Rail mounted gantry cranes are also applied in shipyards and marine engineering facilities for handling heavy steel plates, ship components, and large equipment. Their high load capacity and precise control system help ensure safe and efficient material transportation during ship construction and maintenance.
5. Bridge and Infrastructure Construction Sites
During bridge construction and large infrastructure projects, rail mounted gantry cranes can assist in lifting and moving prefabricated components, steel structures, and construction materials. Their stable operation and large working range make them suitable for demanding construction environments.
6. Machinery Manufacturing and Heavy Equipment Factories
Heavy machinery plants and equipment manufacturing facilities use rail mounted gantry cranes to handle oversized components, production materials, and finished products. The crane’s high reliability and customizable design help meet different industrial lifting requirements and improve overall production efficiency.
If you are interested in our rail mounted gantry crane, please contact us. We offer free design solutions and quotes.
