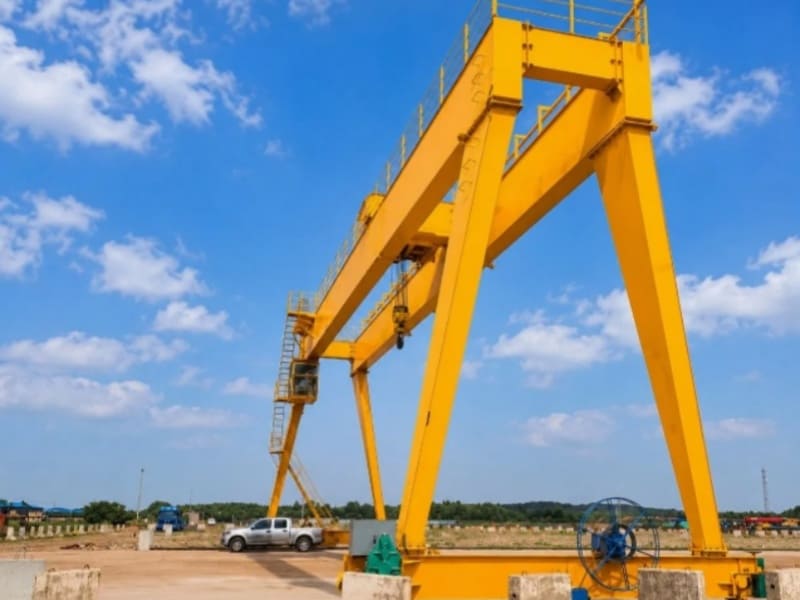

The double girder gantry crane is a heavy-duty lifting solution designed for large-scale outdoor and industrial material handling applications. Featuring a double girder structure, this crane provides higher lifting capacity, excellent stability, and a wider operating range compared with single girder gantry cranes. It is especially suitable for handling heavy loads in environments where high efficiency, durability, and reliable performance are required.
The crane adopts a robust box-type main girder structure, which offers strong rigidity and excellent resistance to deformation under heavy loads. With an optimized design, it ensures stable operation even during frequent lifting tasks. The system can be equipped with high-performance wire rope hoists, open winch trolleys, and operator cabins according to different working conditions and customer requirements.
For safe and convenient operation, the double girder gantry crane supports various control methods, including pendant control, wireless remote control, and cabin operation. It is also equipped with multiple safety protection devices, such as overload limiters, travel limit switches, emergency stop systems, buffers, and rail clamping devices, ensuring reliable operation and improved workplace safety.
Key Features of Double Girder Gantry Crane
1. High Load Capacity for Heavy-Duty Operations
The double girder gantry crane is specially designed for handling heavy and oversized loads in demanding industrial environments. Its reinforced double girder structure provides strong lifting capability, allowing it to safely transport materials such as steel structures, concrete components, machinery, and other heavy goods with high efficiency and reliability.
2. Superior Stability and Long Service Life
With two parallel main girders and a rigid structural design, the crane offers excellent strength, stability, and resistance to deformation during operation. The enhanced rigidity ensures smooth performance under heavy loads, while high-quality materials and precise manufacturing processes contribute to a longer service life and reduced maintenance requirements.
3. Large Working Span and Flexible Operation Range
The double girder gantry crane is suitable for applications requiring wide coverage and large operating areas. It can be customized with different spans, lifting heights, and traveling distances to meet the requirements of large workshops, shipyards, railway yards, ports, and outdoor construction sites.
4. Customized Configuration for Different Applications
Every working environment has unique lifting requirements. The crane can be configured with different hoisting systems, control methods, traveling speeds, and structural designs according to customer needs. Whether for standard material handling or specialized industrial projects, customized solutions are available to achieve optimal performance.
5. Comprehensive Safety Protection System
Safety is a key priority in the design of double girder gantry cranes. The equipment is equipped with advanced safety features, including overload protection devices, lifting and traveling limit switches, emergency stop systems, buffers, and optional anti-sway technology. These systems help improve operational safety and protect both operators and equipment.
6. Easy Maintenance and Convenient Inspection
The double girder gantry crane is designed with user-friendly maintenance requirements in mind. Key components are arranged for easy access, allowing operators and technicians to perform routine inspections, repairs, and servicing more efficiently. This helps minimize downtime and ensures continuous, reliable operation throughout the crane’s service life.
Classification of Heavy Duty Gantry Crane
1. Box-Type Gantry Crane
The box-type gantry crane is one of the most commonly used heavy-duty gantry crane designs, featuring a box-shaped main girder structure composed of two web plates and two flange plates. Compared with traditional beam structures, the box girder provides higher strength, better torsional resistance, and excellent stability when handling heavy loads. It is suitable for demanding lifting applications that require high rigidity and reliable performance. Box-type gantry cranes can be designed in both single girder and double girder configurations, with flexible options for lifting capacity, span, and control methods. They are widely used in industrial plants, outdoor storage yards, ports, shipyards, and large manufacturing facilities.
2. Truss Girder Gantry Crane
The truss girder gantry crane adopts a lightweight truss-style main girder made of interconnected steel members. This structural design reduces the overall weight of the crane while maintaining good strength and stability. Due to its open framework structure, it offers excellent wind resistance, making it especially suitable for outdoor applications in areas exposed to strong winds. Truss girder gantry cranes are commonly used in construction sites, railway yards, ports, and material storage areas for handling steel products, precast components, and other heavy materials. They are available in both single girder and double girder designs to meet different lifting requirements.
3. L-Type Gantry Crane
The L-type gantry crane features an L-shaped supporting leg design, providing a larger operating space beneath the crane structure. This configuration improves accessibility and is particularly suitable for handling long and oversized materials such as steel beams, pipes, and structural components. Compared with traditional heavy duty gantry cranes, the L-type design offers better clearance and flexibility, making it an ideal choice for freight yards, shipyards, and outdoor material handling areas where large working spaces are required. It can also be customized according to specific lifting capacity, span, and working conditions.

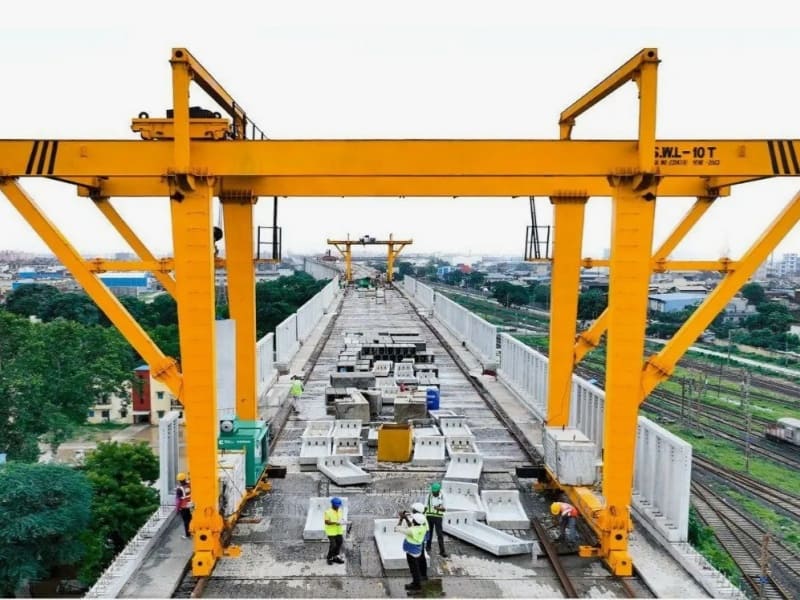

Due to its outstanding lifting performance and strong adaptability, the double girder gantry crane is widely used in steel fabrication workshops, precast concrete yards, shipbuilding facilities, railway construction projects, ports, and logistics terminals. It provides an efficient and dependable solution for lifting and transporting heavy materials in challenging industrial environments.
