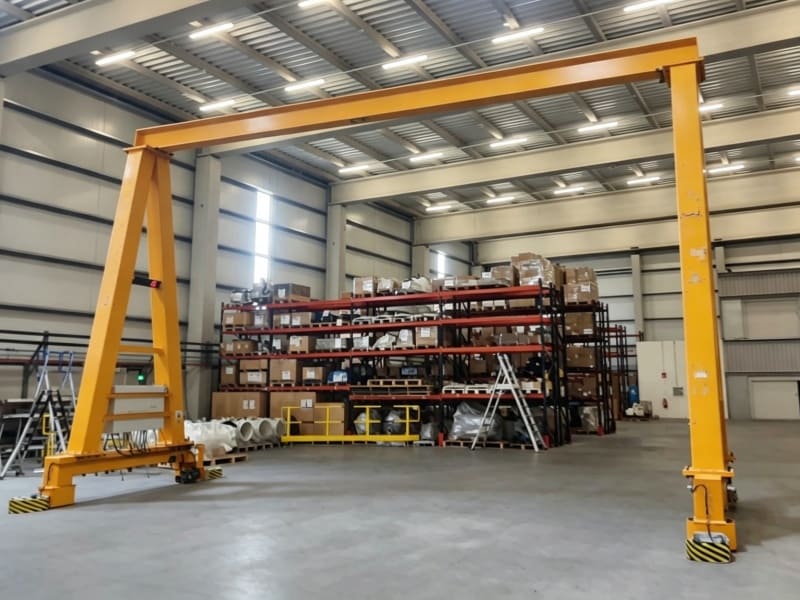

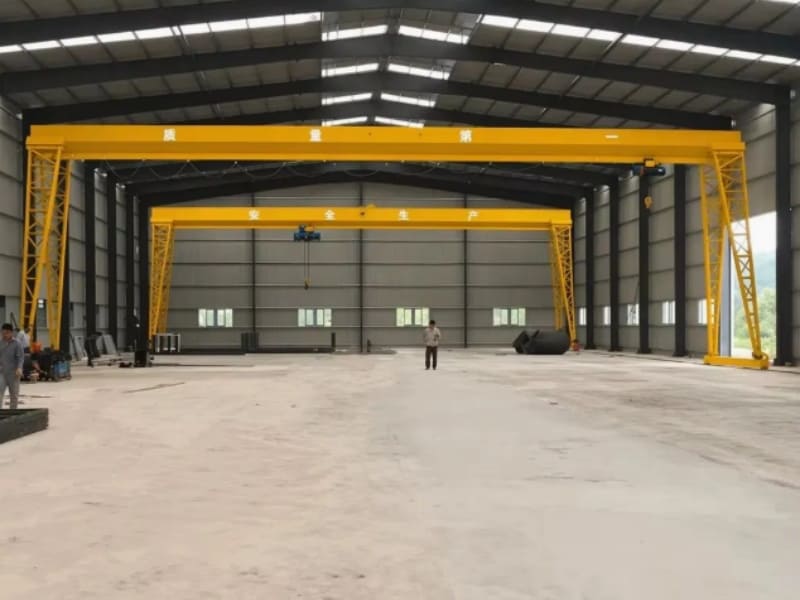

Single girder gantry crane is a cost-effective and reliable lifting solution designed for outdoor and indoor material handling applications. Featuring a strong steel structure and a high-performance electric wire rope hoist, it provides stable lifting performance, smooth operation, and excellent durability. Its optimized design offers a practical solution for industries requiring efficient load handling with reduced installation and maintenance costs.
The crane is widely used in warehouses, factories, outdoor storage yards, shipyards, railway yards, construction sites, and various industrial facilities. It is suitable for lifting and transporting steel products, machinery components, production materials, and other goods with different working requirements.
Main Components
1.Main Girder
The main girder is the primary load-bearing component of the factory gantry crane. It adopts a high-strength box-type structure manufactured from premium steel plates, providing excellent rigidity, stability, and bending resistance. The optimized design ensures reliable performance during heavy material handling operations.
2.Electric Wire Rope Hoist
The electric wire rope hoist is responsible for lifting and lowering loads. Equipped with a high-performance motor and reliable transmission system, it provides smooth lifting movement, accurate positioning, and safe operation for various industrial applications.
3.End Beam
The end beam connects both sides of the main girder and supports the crane traveling mechanism. Its strong structural design ensures stable movement of the crane along the runway while maintaining excellent durability under continuous operation.
4.Support Legs
The support legs provide strong structural support for the entire factory gantry crane. Made from high-quality steel, they offer excellent load-bearing capacity and stability, ensuring safe operation even under heavy-duty working conditions.
5.Traveling Mechanism and Motors
The traveling system consists of driving motors, reducers, wheels, and related components. It enables the factory gantry crane to move smoothly along the rails with reliable speed control, low noise, and efficient performance.
6.Rails and Wheel System
High-strength rails provide a stable traveling path for the crane. The precisely manufactured wheel and rail system ensures smooth movement, reduces wear, and improves the service life of the equipment.
7.Electrical Control System
The intelligent control system provides convenient and safe crane operation. It controls lifting, traveling, and emergency functions, while optional remote control or cabin operation can be configured according to customer requirements.
8.Safety Devices
The factory gantry crane can be equipped with various safety components, including overload protection, limit switches, emergency stop devices, and other protective systems to ensure safe and reliable operation.
Features of Single Girder Gantry Crane
1.Robust Single Girder Structure
Single girder gantry crane adopts a high-strength single beam structure with optimized design technology to ensure excellent load-bearing capacity and structural stability. The lightweight yet durable design provides reliable performance while reducing the overall equipment weight.
2.Reliable Electric Wire Rope Hoist
Equipped with a high-quality electric wire rope hoist, the crane offers smooth lifting, accurate positioning, and stable operation. The hoisting system is designed for frequent material handling tasks with high efficiency and long service life.
3.Smooth and Quiet Traveling Performance
The advanced traveling mechanism ensures stable movement of the crane and trolley with low noise and reduced vibration. This helps improve operating comfort while minimizing mechanical wear during long-term use.
4.Energy-Efficient Drive System
The single girder gantry crane can be equipped with energy-saving motors and optional Variable Frequency Drive (VFD) control technology. This allows smooth acceleration and deceleration, reduces energy consumption, and improves lifting precision and operational efficiency.
5.Comprehensive Safety Protection
Multiple safety devices are integrated to ensure safe operation, including overload protection, limit switches, emergency stop systems, and other optional safety functions. These features help protect operators, equipment, and surrounding facilities.
6.Durable Construction and Corrosion Resistance
Manufactured with high-quality steel and professional surface treatment, the crane provides excellent strength and corrosion resistance. It is suitable for various industrial environments and can maintain reliable performance over a long service period.
7.Easy Installation and Maintenance
The optimized structural design simplifies installation and reduces maintenance requirements. Standardized components and convenient access to key parts help lower operating costs and improve equipment availability.
8.Flexible Customization Options
Single girder gantry crane can be customized according to lifting capacity, span, lifting height, working conditions, and application requirements. Different control methods and configurations are available to meet various industries.
9.Strict Quality Assurance
Every single girder gantry crane is manufactured under a strict quality control system, covering raw material inspection, fabrication, assembly, and final load testing. The production process follows international standards, with CE and ISO certified manufacturing procedures to ensure reliable quality.
Designed with safety, efficiency, and flexibility in mind, the single girder gantry crane can be customized according to lifting capacity, span, lifting height, working environment, and control method. Advanced safety devices, energy-efficient motors, and intelligent control systems ensure reliable operation and improved productivity.
With its combination of strong structure, easy maintenance, and economical performance, the single girder gantry crane is an ideal choice for businesses looking for a dependable and flexible material handling solution.
